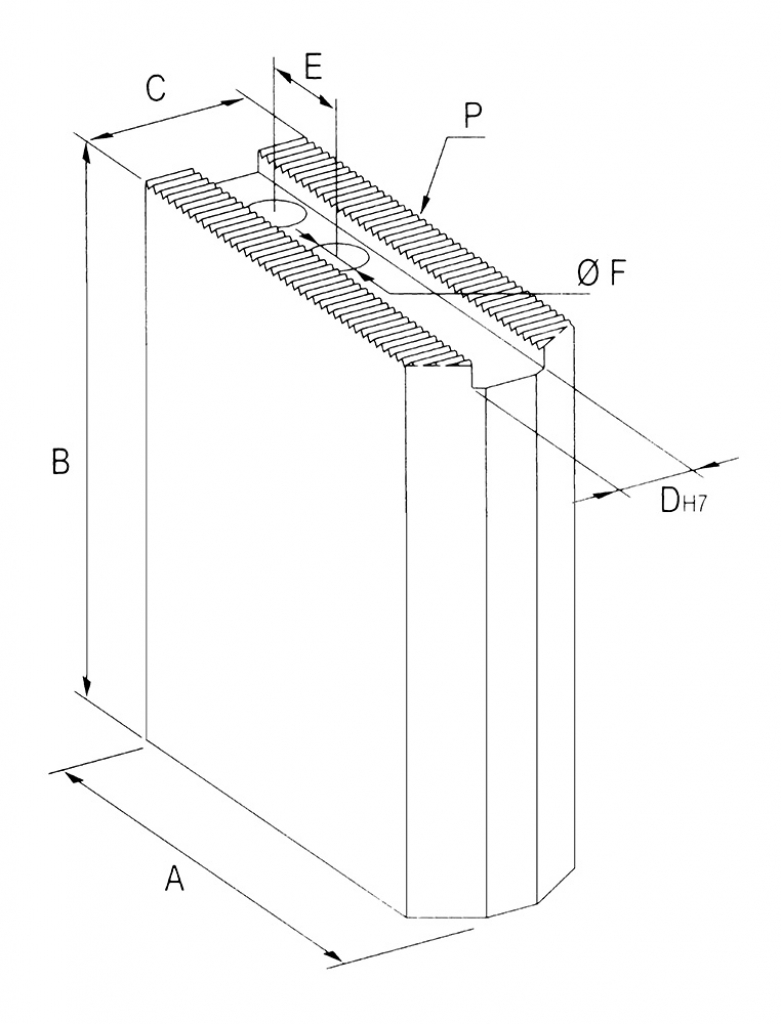

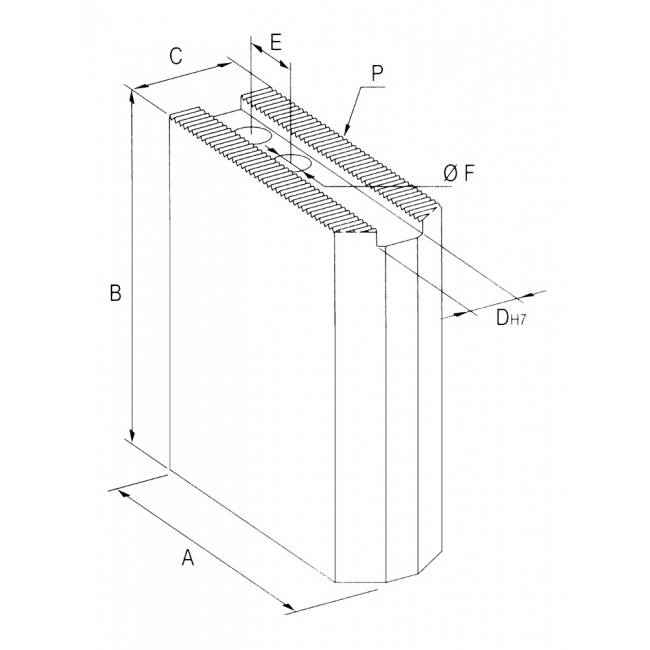

Heights jaws
| Ø autocentrante | A | B | C | Dh7 | E | Ø F | P |
|---|---|---|---|---|---|---|---|
| Ø autocentrante 110 | A 55 | B 40 | C 25 | Dh7 10 | E 14 | Ø F 8,5 | P 1,5x60° |
| Ø autocentrante 110 | A 55 | B 50 | C 25 | Dh7 10 | E 14 | Ø F 8,5 | P 1,5x60° |
| Ø autocentrante 110 | A 55 | B 60 | C 25 | Dh7 10 | E 14 | Ø F 8,5 | P 1,5x60° |
| Ø autocentrante 127 | A 60 | B 40 | C 25 | Dh7 10 | E 18 | Ø F 8,5 | P 1,5x60° |
| Ø autocentrante 127 | A 60 | B 50 | C 25 | Dh7 10 | E 18 | Ø F 8,5 | P 1,5x60° |
| Ø autocentrante 127 | A 60 | B 60 | C 25 | Dh7 10 | E 18 | Ø F 8,5 | P 1,5x60° |
| Ø autocentrante 152 | A 72 | B 50 | C 30 | Dh7 12 | E 20 | Ø F 11 | P 1,5x60° |
| Ø autocentrante 152 | A 72 | B 60 | C 30 | Dh7 12 | E 20 | Ø F 11 | P 1,5x60° |
| Ø autocentrante 152 | A 72 | B 80 | C 30 | Dh7 12 | E 20 | Ø F 11 | P 1,5x60° |
| Ø autocentrante 152 | A 72 | B 100 | C 30 | Dh7 12 | E 20 | Ø F 11 | P 1,5x60° |
| Ø autocentrante 152 | A 72 | B 120 | C 30 | Dh7 12 | E 20 | Ø F 11 | P 1,5x60° |
| Ø autocentrante 203 | A 95 | B 50 | C 40 | Dh7 14 | E 25 | Ø F 13 | P 1,5x60° |
| Ø autocentrante 203 | A 95 | B 60 | C 40 | Dh7 14 | E 25 | Ø F 13 | P 1,5x60° |
| Ø autocentrante 203 | A 95 | B 80 | C 40 | Dh7 14 | E 25 | Ø F 13 | P 1,5x60° |
| Ø autocentrante 203 | A 95 | B 100 | C 40 | Dh7 14 | E 25 | Ø F 13 | P 1,5x60° |
| Ø autocentrante 203 | A 95 | B 120 | C 40 | Dh7 14 | E 25 | Ø F 13 | P 1,5x60° |
| Ø autocentrante 254 | A 110 | B 50 | C 40 | Dh7 16 | E 30 | Ø F 13 | P 1,5x60° |
| Ø autocentrante 254 | A 110 | B 60 | C 40 | Dh7 16 | E 30 | Ø F 13 | P 1,5x60° |
| Ø autocentrante 254 | A 110 | B 80 | C 40 | Dh7 16 | E 30 | Ø F 13 | P 1,5x60° |
| Ø autocentrante 254 | A 110 | B 100 | C 40 | Dh7 16 | E 30 | Ø F 13 | P 1,5x60° |
| Ø autocentrante 254 | A 110 | B 120 | C 40 | Dh7 16 | E 30 | Ø F 13 | P 1,5x60° |
| Ø autocentrante 305 | A 125 | B 60 | C 50 | Dh7 18 | E 30 | Ø F 15 | P 1,5x60° |
| Ø autocentrante 305 | A 125 | B 70 | C 50 | Dh7 18 | E 30 | Ø F 15 | P 1,5x60° |
| Ø autocentrante 305 | A 125 | B 80 | C 50 | Dh7 18 | E 30 | Ø F 15 | P 1,5x60° |
| Ø autocentrante 305 | A 125 | B 100 | C 50 | Dh7 18 | E 30 | Ø F 15 | P 1,5x60° |
| Ø autocentrante 305 | A 125 | B 120 | C 50 | Dh7 18 | E 30 | Ø F 15 | P 1,5x60° |
| Ø autocentrante 305 | A 125 | B 150 | C 50 | Dh7 18 | E 30 | Ø F 15 | P 1,5x60° |
| Ø autocentrante 305 | A 125 | B 60 | C 50 | Dh7 21 | E 30 | Ø F 17 | P 1,5x60° |
| Ø autocentrante 305 | A 125 | B 70 | C 50 | Dh7 21 | E 30 | Ø F 17 | P 1,5x60° |
| Ø autocentrante 305 | A 125 | B 80 | C 50 | Dh7 21 | E 30 | Ø F 17 | P 1,5x60° |
| Ø autocentrante 305 | A 125 | B 100 | C 50 | Dh7 21 | E 30 | Ø F 17 | P 1,5x60° |
| Ø autocentrante 305 | A 125 | B 120 | C 50 | Dh7 21 | E 30 | Ø F 17 | P 1,5x60° |
| Ø autocentrante 305 | A 125 | B 150 | C 50 | Dh7 21 | E 30 | Ø F 17 | P 1,5x60° |
| Ø autocentrante 381 | A 165 | B 80 | C 60 | Dh7 22* | E 43 | Ø F 21 | P 1,5x60° |
| Ø autocentrante 381 | A 165 | B 100 | C 60 | Dh7 22* | E 43 | Ø F 21 | P 1,5x60° |
| Ø autocentrante 381 | A 165 | B 120 | C 60 | Dh7 22* | E 43 | Ø F 21 | P 1,5x60° |
| Ø autocentrante 381 | A 165 | B 150 | C 60 | Dh7 22* | E 43 | Ø F 21 | P 1,5x60° |
| Ø autocentrante 457 | A 180 | B 100 | C 70 | Dh7 25 | E 60 | Ø F 21 | P 3x60° |
| Ø autocentrante 457 | A 180 | B 120 | C 70 | Dh7 25 | E 60 | Ø F 21 | P 3x60° |
*These heights jaws can also be supplied with the dimension Dh7=25,5
