Officina Mariani - Jaws e Accessories per self-centering chunks
Howa

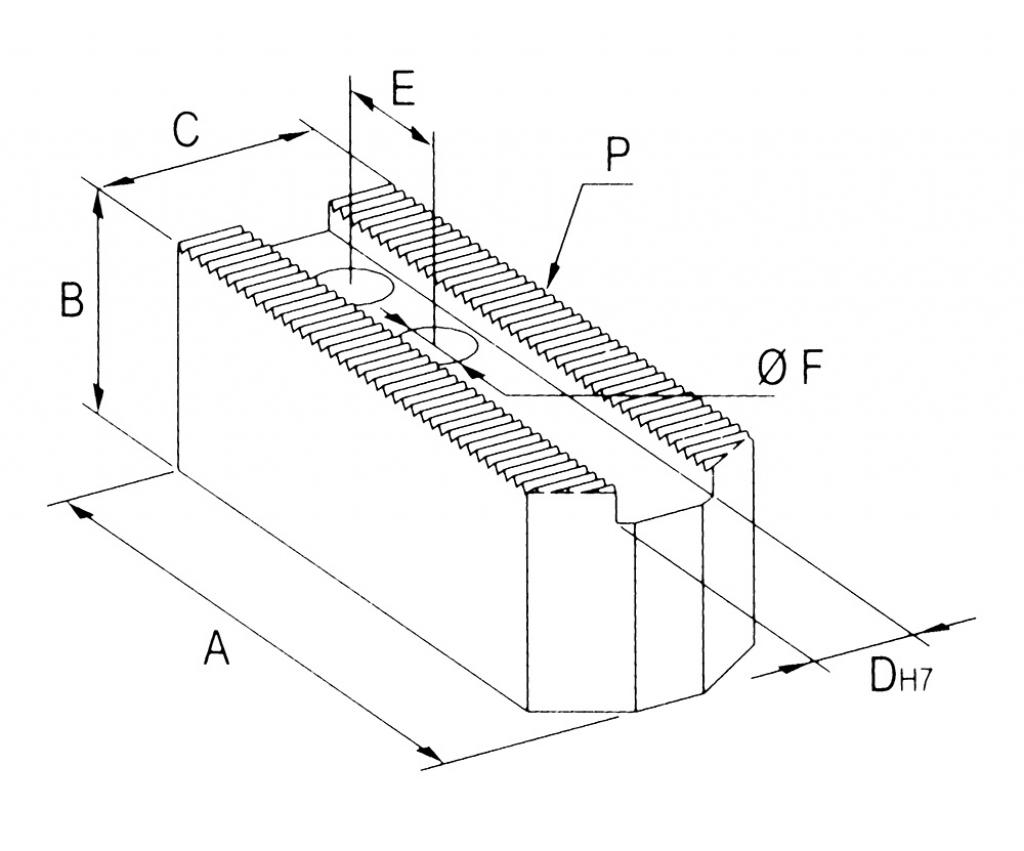

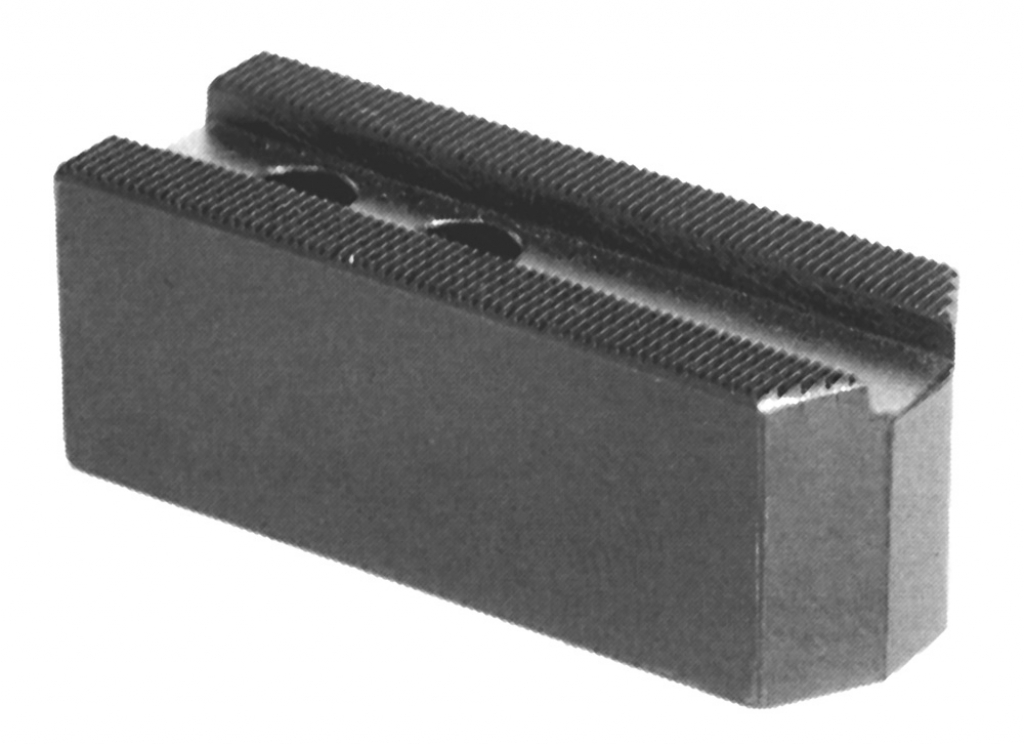

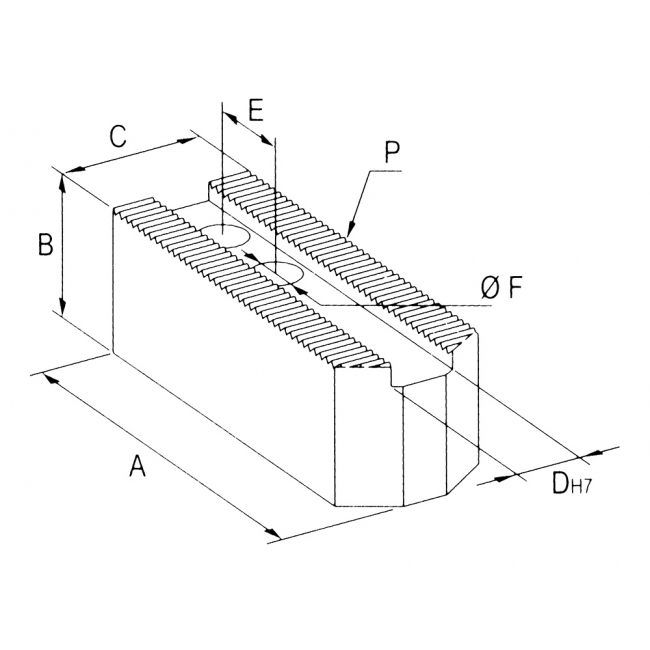

Standard jaws
| Ø autocentrante | A | B | C | Dh7 | E | Ø F | P |
|---|---|---|---|---|---|---|---|
| Ø autocentrante 110-127 | A 55 | B 25 | C 25 | Dh7 10 | E 14 | Ø F 9 | P 1,5x60° |
| Ø autocentrante 110-127 | A 55 | B 25 | C 25 | Dh7 11 | E 16 | Ø F 9 | P 1,5x60° |
| Ø autocentrante 152 | A 72 | B 30 | C 30 | Dh7 12 | E 20 | Ø F 11 | P 1,5x60° |
| Ø autocentrante 203 | A 95 | B 35 | C 35 | Dh7 14 | E 25 | Ø F 13 | P 1,5x60° |
| Ø autocentrante 203 | A 95 | B 40 | C 40 | Dh7 16 | E 25 | Ø F 13 | P 1,5x60° |
| Ø autocentrante 254 | A 110 | B 40 | C 40 | Dh7 16 | E 30 | Ø F 13 | P 1,5x60° |
| Ø autocentrante 254 | A 110 | B 45 | C 45 | Dh7 18 | E 30 | Ø F 15 | P 1,5x60° |
| Ø autocentrante 305 | A 130 | B 50 | C 50 | Dh7 18 | E 30 | Ø F 15 | P 1,5x60° |
| Ø autocentrante 305 | A 130 | B 50 | C 50 | Dh7 21 | E 35 | Ø F 17 | P 1,5x60° |
